CADEN FOSS
Tugboat Model

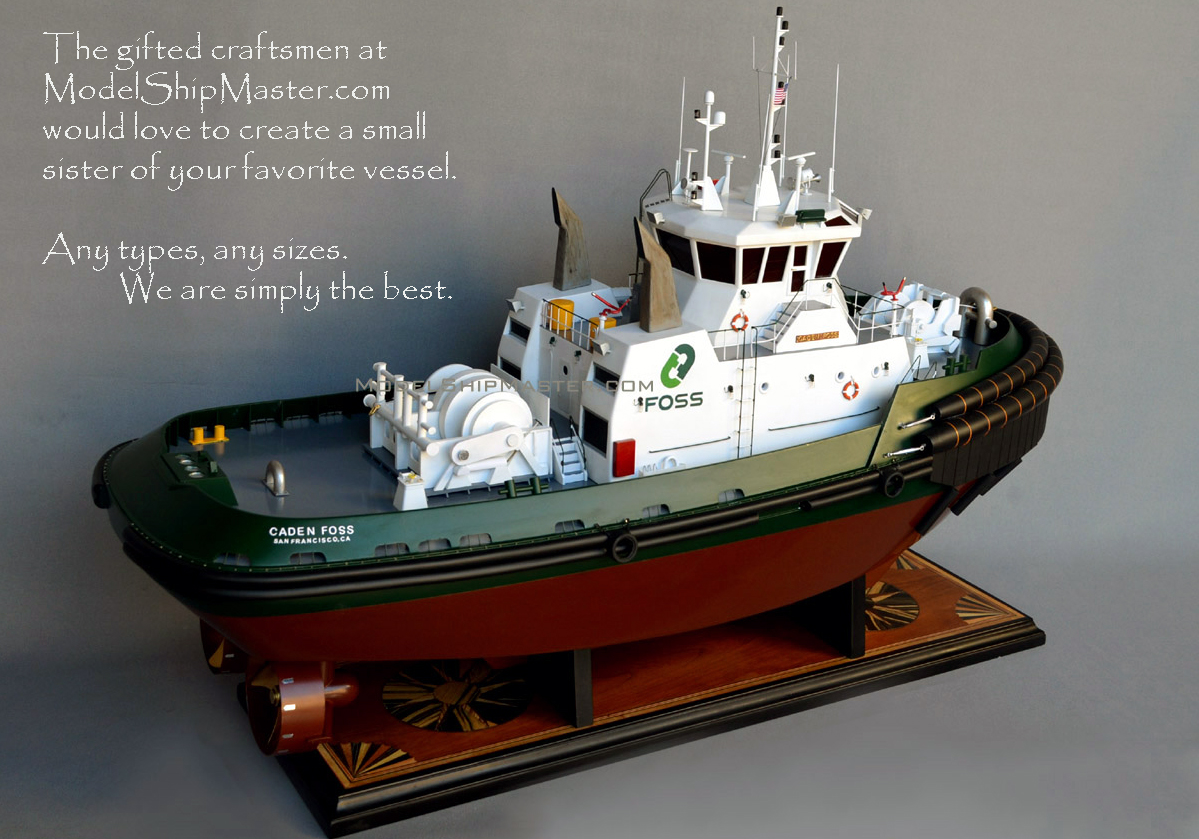

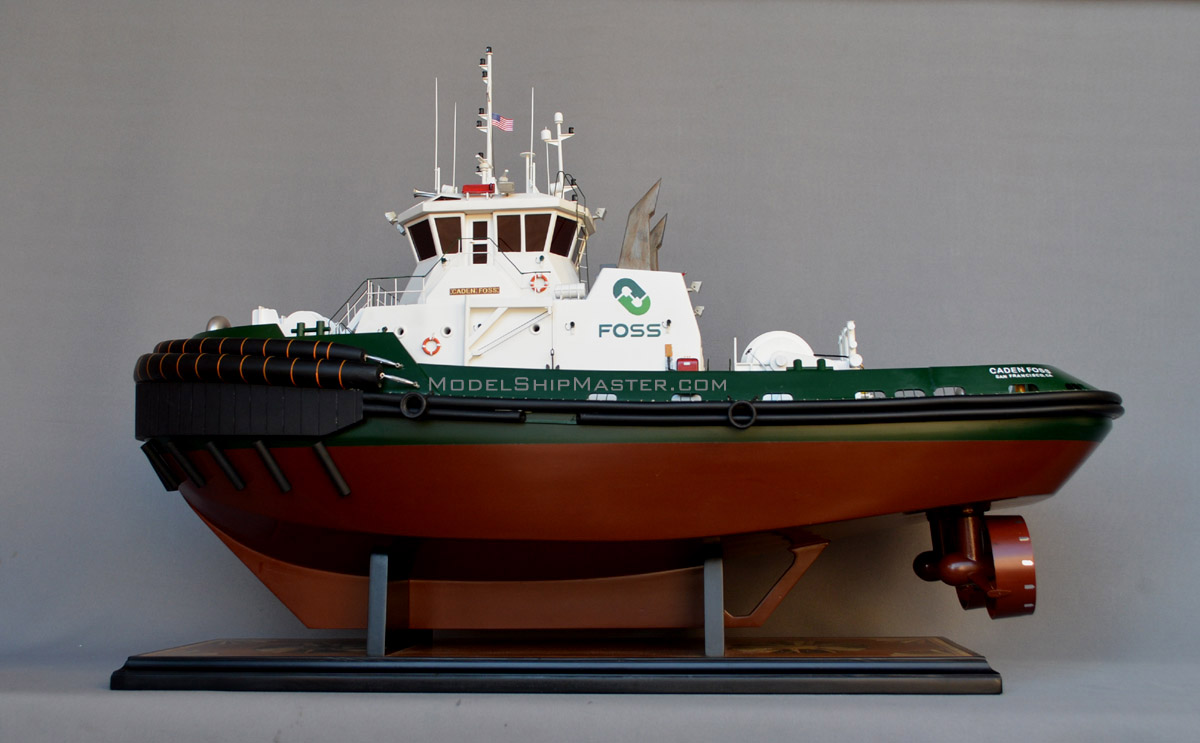

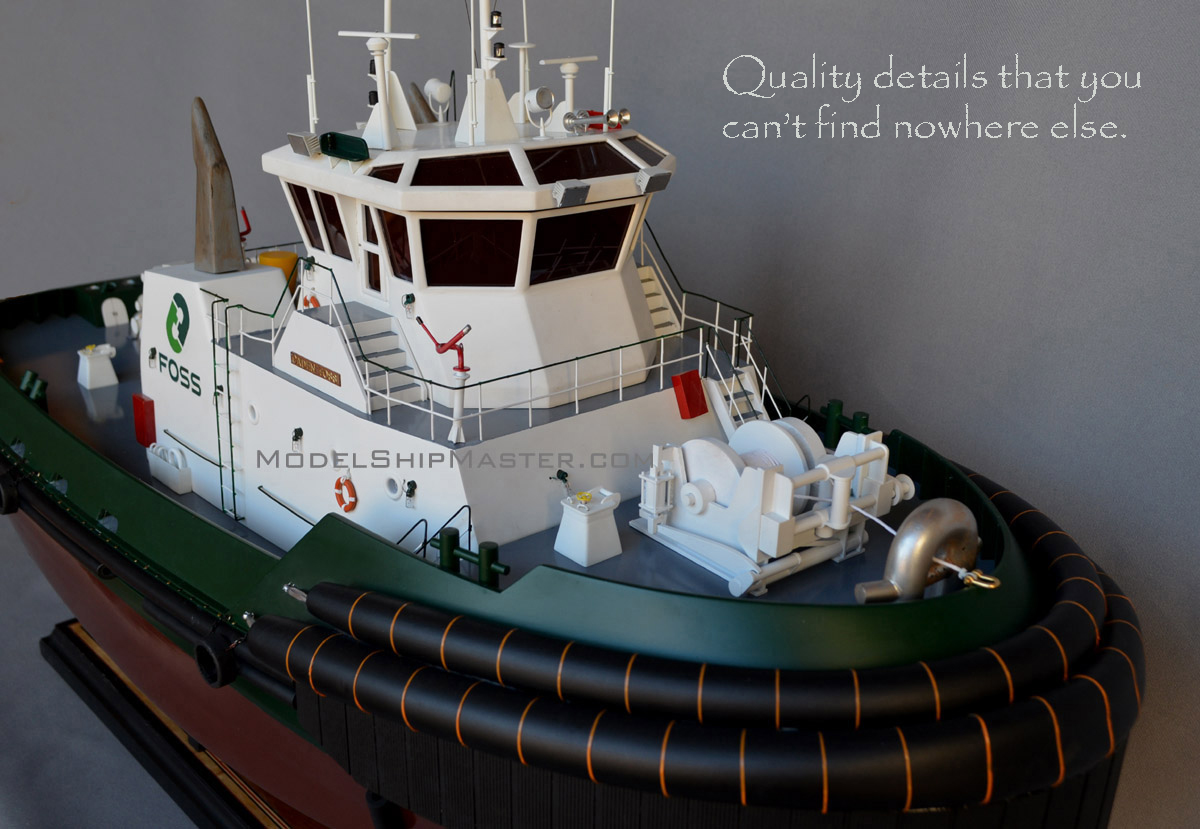

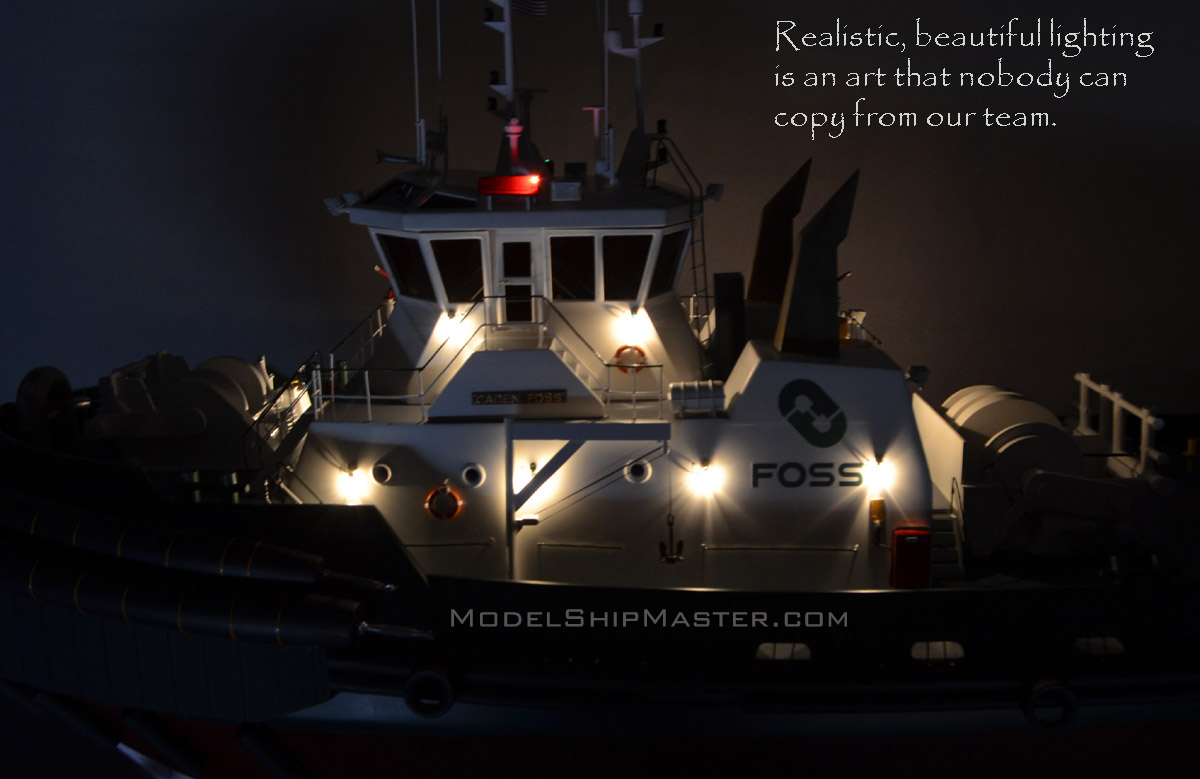

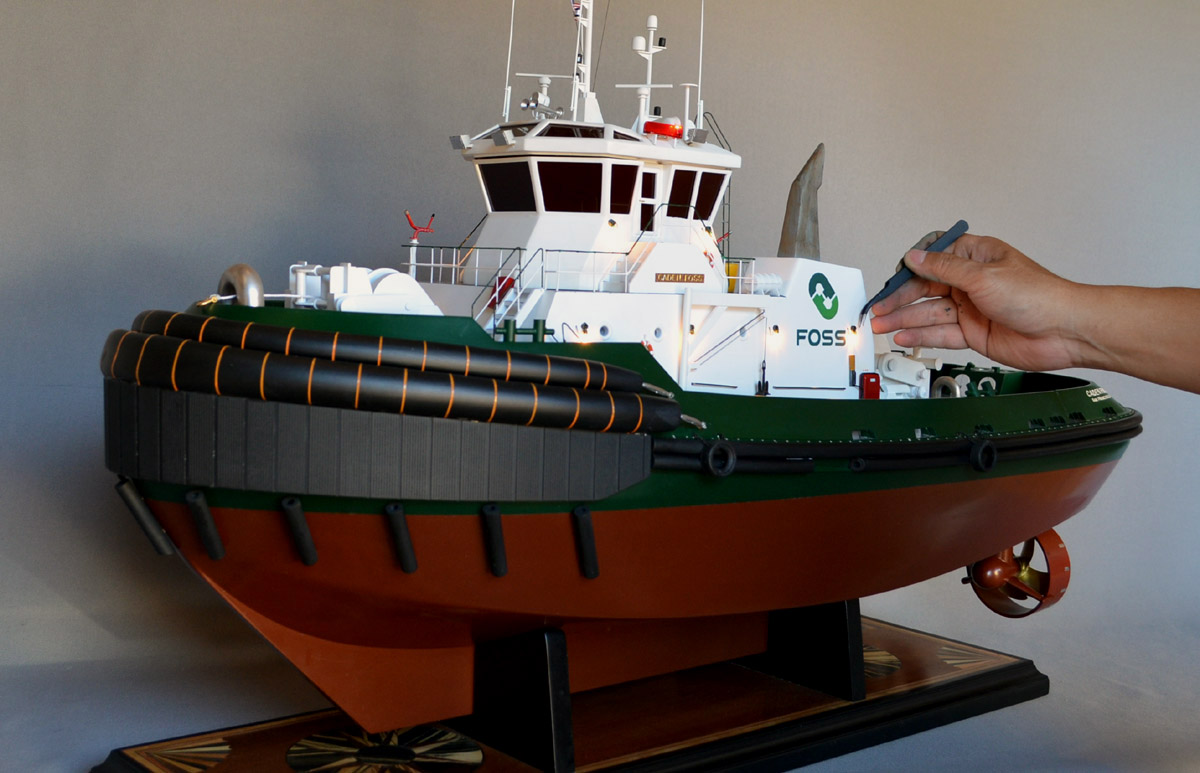

The model shown below was
commissioned by a Foss' executive in 2020. It is
grand-40" long. If you have limited display place,
click on the following link to view a smaller
tug model.
This is an example of ModelShipMaster's accuracy and
quality. If you are an executive or a distinguished
collector who wants only the very best for your vessel, we
are the only natural choice. You don't have to take our
words for granted, just spend some time checking out
models on the Internet and see if anything remotely
comparable with our tug models. A Google search phrase
such as
'tugboat model'
would give plenty. Beware of some companies that wildly claim their
products "museum quality" but post tiny photos that are
very difficult for you to see true details and missing
features.
The
110-foot
Caden Foss was delivered by
JT Marine in Vancouver, Wash. in 2017. She was named
after Caden Hansen, a great-great-grandson of company
founders Andrew and Thea Foss. Foss Maritime has
chartered the 6,772-hp azimuth stern drive (ASD) vessel,
owned by Vessel Chartering LLC, a subsidiary of Baydelta
Navigation Ltd. The vessel
initially worked from the Chevron Long Wharf Terminal in
Richmond, California.
Designed,
and equipped for standby, ship assist, and escort
assignments, Caden Foss is also outfitted for rescue
towing. Two Caterpillar 3516E diesel engines, with
Rolls-Royce US 255 FP z-drives produces a rated 6,772
horsepower.
Her
electrical service is provided by one 150kW generator
set, driven by a Caterpillar C7.1 diesel engine, and,
one, 65kW, Caterpillar C4.4 diesel engines. The tug's
capacities are 123,000 gallons of fuel and 6,530 gallons of
water.

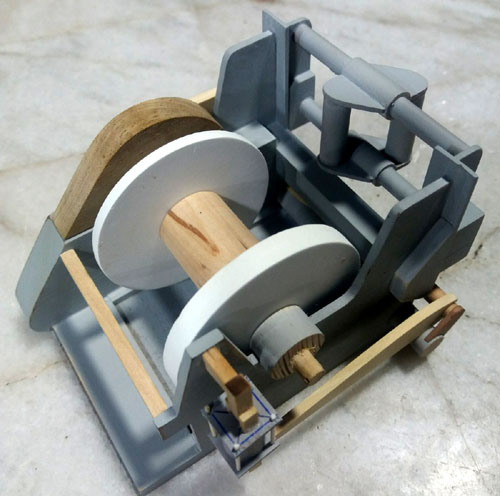

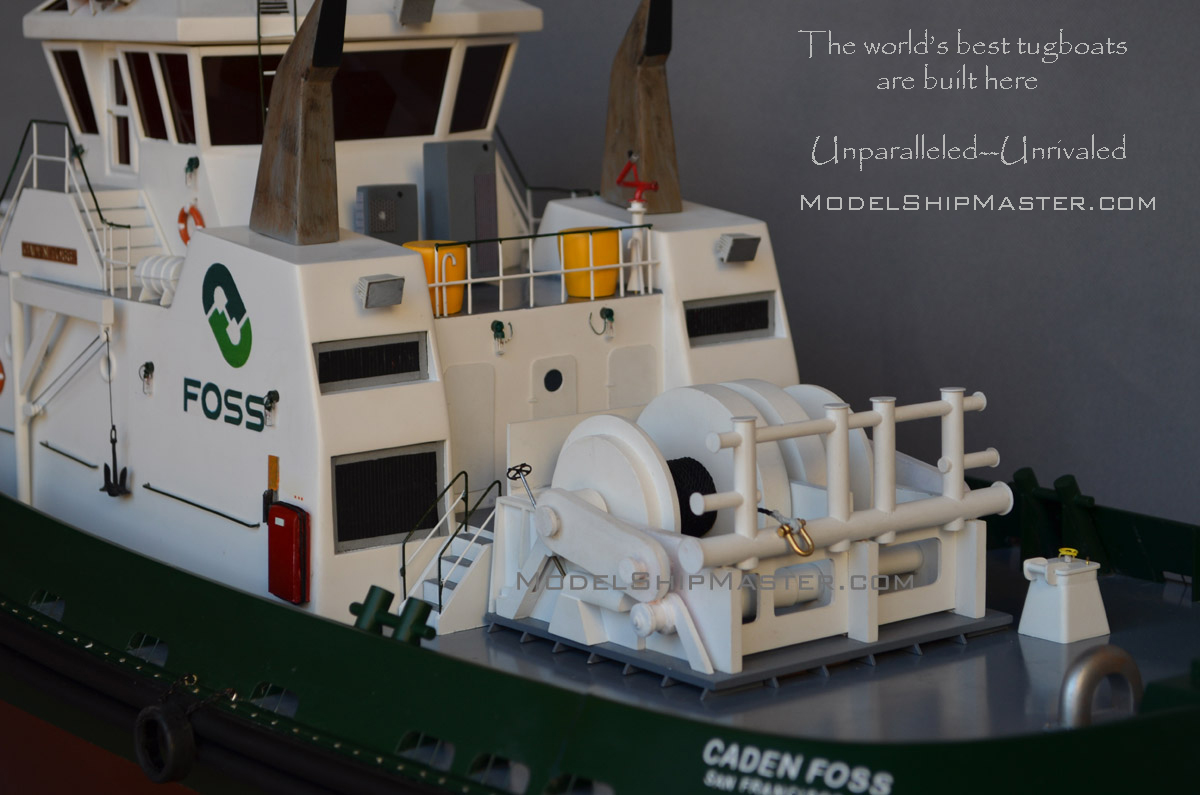

The towing
equipment consists of a Markey DEPCF-52, electric hawser
winch, mounted on the bow. Outfitted with 450(ft) of
Cortland 3(in), Plasma, 12 by 12, line. With 12 by 12,
LoCo pendant on the bow. And, a Rapp, double-drum,
electric towing winch, mounted on the stern. Outfitted
with 2,500(ft) of 2.5(in) wire.
Propulsion
-
Engines: (2) Cat 3516E Tier 4 mains each producing
3,386 at 1,800 rpm
-
Bollard pull: 95 tons
-
Vessel
speed: 13-14 knots
-

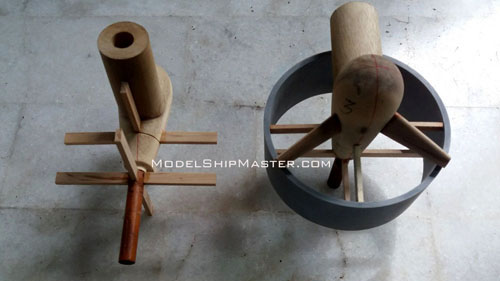

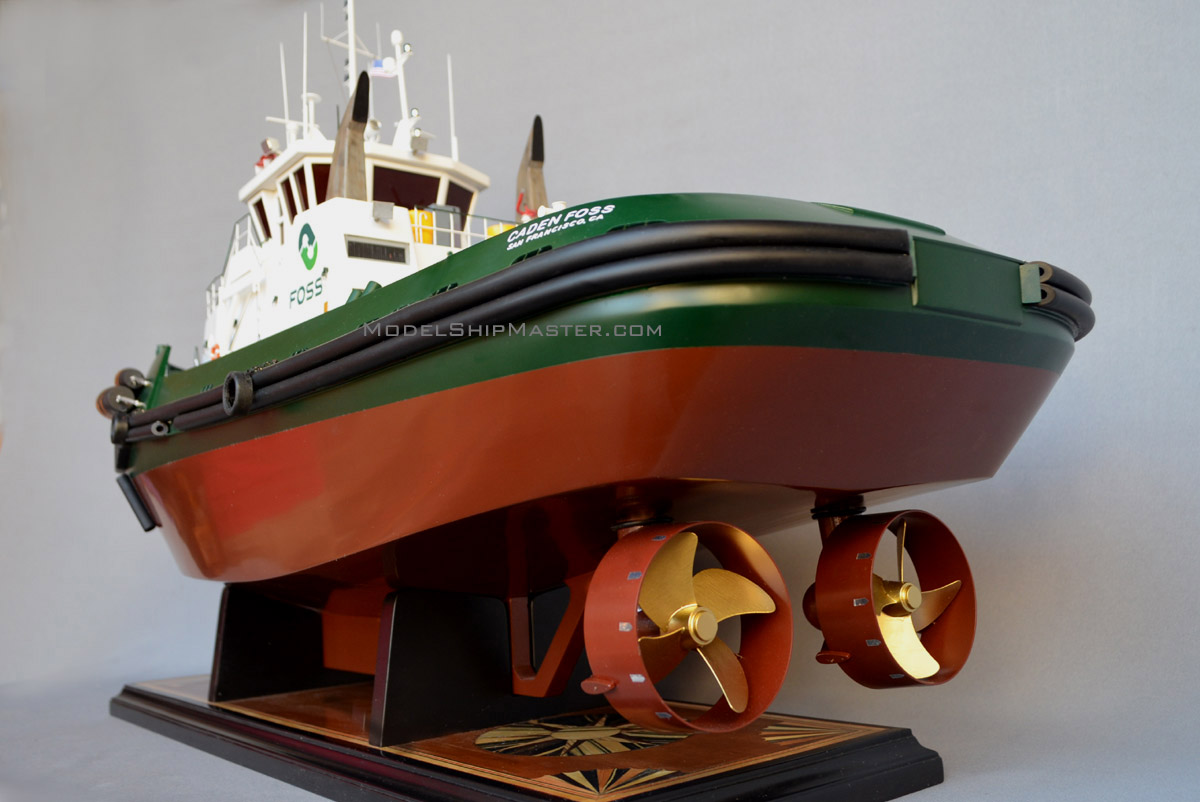

Z-drives: Rolls-Royce US 255 FP z-drives, Centa
carbon-fiber shafting and nibral props
-
Auxiliary generators: (2) Caterpillar C7.1 producing
150 kW; (1) Caterpillar C4.4 producing 65 kW
Deck equipment
-
Winches: Markey DEPCF-52 electric hawser winch on
the bow; Rapp double-drum electric towing winch on
the stern
-
Cordage: 450’ of Cortland 3” Plasma 12x12 rope and
12x12 LoCo pendant on the bow; 2,500’ of 2.5” wire
on the stern
-
Fendering: Schuyler Cos.; double Shibata bow
fenders; (2) rows M-rubber and D-rubber along shear
plus an additional row of D-rubber
Capacities
Learn more
about Foss tugs here:
https://en.wikipedia.org/wiki/Foss_Maritime
|
